Description

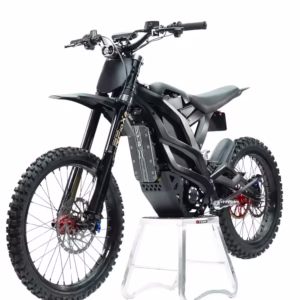

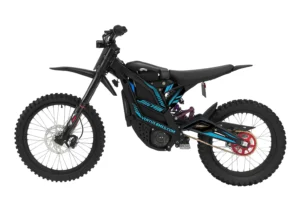

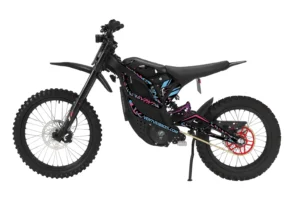

The Ventus One V1+ is the pinnacle of electric dirt performance — built for speed, power, and endurance. Featuring a 28 kW high-output PMSM motor, advanced sine-wave controller, and a 72 V 50 Ah lithium battery, it pushes electric riding to new extremes with 130 km/h top speed and a 115 km range.
Crafted with a precision aluminum alloy frame, it’s lightweight, rugged, and available in stunning Pink, Blue, and Pink & Blue finishes.
PERFORMANCE
-
28 000 W (28 kW) permanent-magnet synchronous motor (PMSM) for instant acceleration.
-
Top speed 130 km/h (81 mph) with outstanding torque response.
-
Maximum range 115 km (71 mi) at cruising speed.
-
72 V 50 Ah lithium-ion battery for long-distance performance and endurance.
-
Charging time ≈ 4.2 hours for a full charge.
-
Sine-wave controller ensures smooth, quiet, and efficient power delivery.
COMFORT & CONTROL
-
Lightweight aluminum alloy frame — only 69 kg (with battery).
-
830 mm seat height for ideal off-road posture and handling.
-

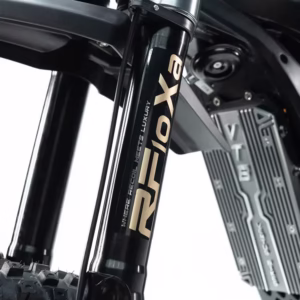

200 mm front / 85-290 mm rear suspension absorbs impacts and improves traction.
-
Wheelbase 1250 mm optimized for precision control.
-
Ground clearance 275 mm for rugged terrain performance.
-
Multi-speed internal hub allows 3 or 5 speeds for flexible riding styles.
SAFETY FEATURES
-

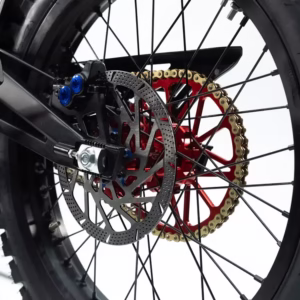

Hydraulic braking system with large 70/100-19 (front) and 3.0-18 (rear) tires.
-

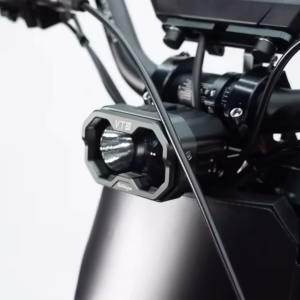

Dual LED lighting system for maximum visibility in all conditions.
-
Reinforced swingarm and aluminum chassis for high-impact durability.
-
PIN unlock and near-unlocking system for added security and theft protection.
SMART E-DRIVE MODES
-
Sine-wave controller delivers adaptive throttle precision.
-
Energy-efficient regenerative braking extends riding range.
-
Digital dashboard display shows speed, battery, and ride diagnostics.
TECHNICAL SPECIFICATIONS
| Feature | Details |
|---|---|
| Model | Ventus One V1+ (Off-Road) |
| Motor Power | 28 000 W (28 kW) PMSM |
| Battery | 72 V 50 Ah Lithium-Ion |
| Top Speed | 130 km/h (81 mph) |
| Range | Up to 115 km (71 mi) |
| Charging Time | 4.2 Hours |
| Frame Material | Aluminum Alloy |
| Seat Height | 830 mm |
| Ground Clearance | 275 mm |
| Wheelbase | 1250 mm |
| Suspension | Front 200 mm / Rear 85-290 mm |
| Weight | 69 kg (with battery) |
| Max Load | 110 kg |
| Wheels / Tires | Front 70/100-19 Rear 3.0-18 |
| Controller | Sine Wave Controller |
| Gear System | 3 or 5 Speed Internal Hub |
| Unlock System | Near Unlock + PIN Unlock |
| Color Options | Pink / Blue / Pink & Blue |
